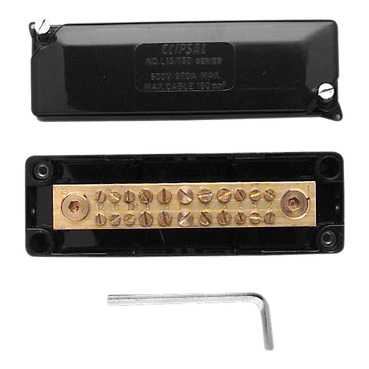

Clipsal - Max 4 Maxi Neutral link 370 A 500 V 13 hole with cover front wiring Black
Item Number: L13/150
Datasheet
Close
Specifications
Design
Range
MAX9
Product brand
Clipsal
Range of product
Blue Point
Product or component type
neutral link
Physical
[in] rated current
370 A
[ue] rated operational voltage
500 V
Connector type
screw terminals
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs exemption information
Yes
Circularity profile
N/A
Others
Commercial status history
- SESA301466
- Thu Aug 10 18:38:00 EDT 2023
- From Import Local
- From 18 to 19
Package 1 bare product quantity
1
Cable cross section
150 mm²
Number of mounting holes
13
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.0 cm
Package 1 width
6.0 cm
Package 1 length
16.5 cm
Package 1 weight
705.0 g
Packaging made with recycled cardboard
Yes
