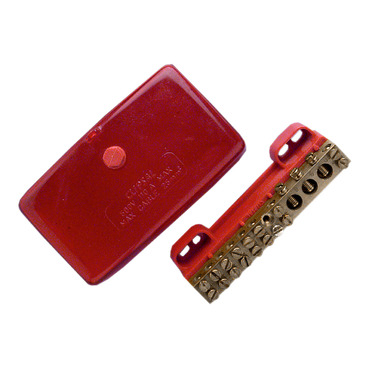

Clipsal - Max 4 Maxi Active link 110A 500 V 11 hole with cover back wiring Red
Item Number: L11/25BWR
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Range of product
Blue Point
Product or component type
active link
Physical
[in] rated current
110 A
[ue] rated operational voltage
500 V
Connector type
screw terminals
Number of poles
1
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope
Eu rohs directive
Compliant
Others
Weee label
N/A
Warranty duration(in months) bmecat
18
Outside of Europe
Package 1 bare product quantity
1
Legacy weee scope
In
Cable cross section
25 mm²
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.001 kg
Sustainable packaging
No
Warranty (in months)
18
