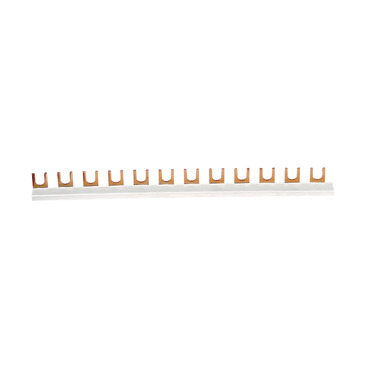

Clipsal - Max 4 Fork type busbar 1P 80 A 12 modules

Item Number: 4BB4/12

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9318795017464	-
50	BB1	19318795017461	-

Specifications

Design

Product brand	Clipsal

Physical

[in] rated current	80 A
Connector type	fork
Number of poles	12
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2206007EN
Eu rohs directive	Compliant

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	50
Package 3 bare product quantity	150
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Warranty duration(in months) bmecat	18
Network number of phases	1 phase
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.500 cm
Package 1 width	1.500 cm
Package 1 length	21.500 cm
Package 1 weight	51.000 g
Unit type of package 2	BB1
Number of units in package 2	50
Package 2 height	10.000 cm
Package 2 width	12.000 cm
Package 2 length	22.000 cm
Package 2 weight	2.818 kg
Unit type of package 3	S02
Number of units in package 3	150
Package 3 height	15.000 cm
Package 3 width	30.000 cm
Package 3 length	40.000 cm
Package 3 weight	8.300 kg
Total lifecycle carbon footprint	0.2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.22677392857142856
Carbon footprint of the manufacturing phase [a1 to a3]	0.2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.007684607142857142
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0007958428571428572
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.006621500000000001
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.2418796428571429
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
