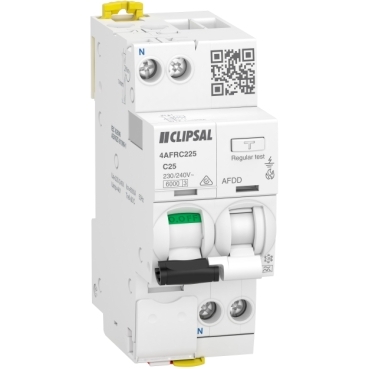

Clipsal - Max 4 Arc Fault Detection Device (AFDD) 1PN 25A C curve 30mA Type A 6000A

Item Number: 4AFRC225

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width36 mm

Height91 mm

Depth75 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606481489364	-

Specifications

Design

Range	MAX4
Product brand	Clipsal
Product or component type	arc fault detection RCBO

Physical

Standards	IEC 62606 AS/NZS 61009.1
[in] rated current	25 A
[ue] rated operational voltage	230/240 V AC 50 Hz conforming to AS/NZS 61009.1 230/240 V AC 50 Hz conforming to IEC 62606
Control type	toggle
Local signalling	ON, OFF, fault trip
Mounting mode	clip-on
Mounting support	DIN rail
Mechanical durability	20000 cycles
Electrical durability	10000 cycles 240 V AC 50 Hz conforming to AS/NZS 61009.1
Cable entry	top and bottom
Connections - terminals	tunnel type terminal for 2 cable(s) 2.5-2.5 mm² rigid tunnel type terminal for 1 cable(s) 16-16 mm² rigid tunnel type terminal for 2 cable(s) 2.5-2.5 mm² flexible tunnel type terminal for 1 cable(s) 10-10 mm² flexible
Wire stripping length	14 mm
Height	91 mm
Width	36 mm
Depth	75 mm
Net weight	205 g
Ip degree of protection	IP20 conforming to IEC 60529
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-25...60 °C
Ambient air temperature for storage	-40...80 °C
Product certifications	RCM
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2205013EN
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Product name	MAX4 AFDD
Product specific application	arc fault detection
Device short name	AFDD
Poles description	1P + N
Number of protected poles	1
Curve code	C
Breaking capacity	6000 A at 240 V AC 50 Hz conforming to AS/NZS 61009.1
Earth-leakage sensitivity	30 mA
Network type	AC
Earth-leakage protection time delay	instantaneous
Earth-leakage protection class	class A
Neutral position	left
Suitability for isolation	yes
Residual current tripping technology	voltage dependent
Trip unit technology	thermal-magnetic
Earth-leakage protection	integrated
Network frequency	50 Hz
Device location in system	outgoer
Magnetic tripping limit	5...10 x In
[ics] rated service breaking capacity	6000 A at 240 V AC 50 Hz conforming to AS/NZS 61009.1
Limitation class	3 conforming to AS/NZS 61009.1
[ui] rated insulation voltage	400 V AC
Threshold tripping voltage	275 V for +/- 5 V
[uimp] rated impulse withstand voltage	4 kV conforming to AS/NZS 61009.1
Contact position indicator	yes
Overvoltage category	III
Locking options description	padlocking device (A9A26970)
Tightening torque	2 N.m
Comb busbar and distribution block compatibility	YES
9 mm pitches	4
Heat dissipation	6.50...6.50 W at 230 V - 25 A
Pollution degree	2 conforming to AS/NZS 61009.1 2 conforming to IEC 62606
Tropicalisation	severity B conforming to IEC 60068-2-30 for 28 d
Operating altitude	2000 m
Quality labels	RCM
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.5 cm
Package 1 width	3.6 cm
Package 1 length	9.1 cm
Package 1 weight	240.0 g
Green premium status for reporting	Green Premium product
Sustainable packaging	No
Pvc free	No
Silicone-free	No
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	b078722f-7853-4e1e-a05b-29638f57b0ab
Pvc free	No
Silicone-free	No
End of life manual availability	ENVEOLI2205013EN
Take-back	No
Warranty (in months)	18
