Acti9, Voltage release, MNx 380-415VAC DC

Home ProductsCircuit ProtectionActi 9Voltage release

Acti9, Voltage release, MNx 380-415VAC DC

Item Number: A9N26971

This MNx product is an overvoltage release auxiliary. It is mounting on left side of circuit-breaker. The Uc control circuit voltage is 400VAC with a 50/60Hz frequency. It can be controlled by an external feeding. The dimensions are (W) 18mm x (H) 82.5mm x (D) 73.5mm.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width18 mm

Height icon

Height82.5 mm

Depth icon

Depth73.5 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

undervoltage release

Range of product

  • C120
  • Clario
  • DPN
  • ID
  • C60
  • DPN Vigi
  • Librio
  • ProDis

Product compatibility

  • C40
  • IDc
  • ITG40
  • C60
  • iDPN
  • DT40
  • ID C40
  • C120
  • DPN Vigi
  • DT60

Market segment

  • small commercial
  • residential

Warranty

18 months

Physical

Control type

with external feeding

Range compatibility

  • Acti9 iDPN
  • Acti9 C120
  • Acti9 C40
  • Acti9 C60H-DC
  • Acti9 C60NA-DC
  • Acti9 C60PV-DC
  • Acti9 DPN Vigi
  • Acti9 DT40
  • Acti9 DT60
  • Acti9 ID C40
  • Acti9 IDc
  • Acti9 ITG40
  • Acti9 ID
  • Acti9 DPN

Local signalling

action indicator

Mounting mode

fixed

Mounting support

35 mm symmetrical DIN rail

Height

82.5 mm

Width

18 mm

Depth

73.5 mm

Net weight

73 g

Connections - terminals

  • screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible
  • screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible with ferrule
  • screw clamp terminal (bottom) - 1 cable(s) 0.5-2.5 mm² - rigid

Wire stripping length

9 mm for bottom connection

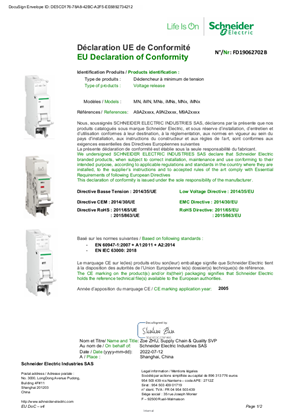

Standards

EN/IEC 60947-1

Product certifications

  • ASTA
  • LCIE
  • KEMA
  • ASEFA

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-25...50 °C

Ambient air temperature for storage

-40...85 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP1304030

Circularity profile

ENVEOLI1304030

Others

Package 1 bare product quantity

1

Packaging made with recycled cardboard

No

Packaging without single use plastic

Yes

Device short name

MNx

[uc] control circuit voltage

400 V AC 50/60 Hz

9 mm pitches

2

Comb busbar and distribution block compatibility

top: YES

Tightening torque

1 N.m bottom

Compatibility code

MNx

Tropicalisation

2 conforming to EN/IEC 60947-5-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3 cm

Package 1 width

8 cm

Package 1 length

9.5 cm

Package 1 weight

85 g

Unit type of package 2

BB1

Number of units in package 2

8

Package 2 height

8.5 cm

Package 2 width

10 cm

Package 2 length

26.5 cm

Package 2 weight

736 g

Unit type of package 3

S03

Number of units in package 3

72

Package 3 height

30 cm

Package 3 width

30 cm

Package 3 length

40 cm

Package 3 weight

7.144 kg

Green premium status for reporting

Green Premium product

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
Show all specifications
