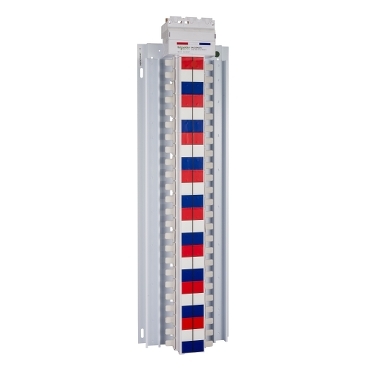

Acti9 SAU Chassis 250A, 3Ph, 48 poles, 27mm for C120 MCB, top or bottom

Acti9 SAU Chassis 250A, 3Ph, 48 poles, 27mm for C120 MCB, top or bottom

Item Number: SAU25048273

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

chassis

Device application

distribution

Physical

Range compatibility

Acti 9 distribution board

[in] rated current

250 A

Rated voltage

415 V 50 Hz

Number of poles

48 x 27 mm

Number of poles

48

Length

650 mm

Width

215 mm

Standards

AS/NZS 61439

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Package 1 bare product quantity

1

Busbar type

standard

Network type

AC

Short-circuit withstand

25 kA 0.1 s

[ui] rated insulation voltage

500 V

[uimp] rated impulse withstand voltage

6 kV

Number of ways

1 way (incomer) - 3P

Busbar pitch

27 mm

Location of connection

top or bottom

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.5 cm

Package 1 width

24.5 cm

Package 1 length

84.2 cm

Package 1 weight

5.2 kg
