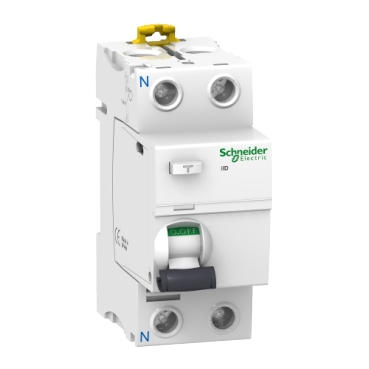

Acti9, Residual current circuit breaker (RCCB), iID, 2P, 63A, A-SI type, 30mA

Home ProductsCircuit ProtectionActi 9Residual current circuit breaker (RCCB)

Acti9, Residual current circuit breaker (RCCB), iID, 2P, 63A, A-SI type, 30mA

Item Number: A9R91263

Datasheet

Product Dimensions

Width icon

Width36 mm

Height icon

Height91 mm

Depth icon

Depth73.5 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

iID

Range

Acti9

Product or component type

residual current circuit breaker (RCCB)

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

[in] rated current

63 A

[ue] rated operational voltage

220...240 V AC 50/60 Hz

Control type

toggle

Mounting mode

clip-on

Mounting support

DIN rail

Height

91 mm

Width

36 mm

Depth

73.5 mm

Net weight

0.21 kg

Mechanical durability

20000 cycles

Electrical durability

AC-1: 15000 cycles

Connections - terminals

single terminal top or bottom 1-35 mm² rigid|single terminal top or bottom 1-25 mm² flexible|single terminal top or bottom 1-25 mm² flexible with ferrule

Wire stripping length

14 mm for top or bottom connection

Standards

EN/IEC 61008-1

Ip degree of protection

IP20 conforming to IEC 60529|IP40 (modular enclosure) conforming to IEC 60529

Ambient air temperature for operation

-25...60 °C

Ambient air temperature for storage

-40...85 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

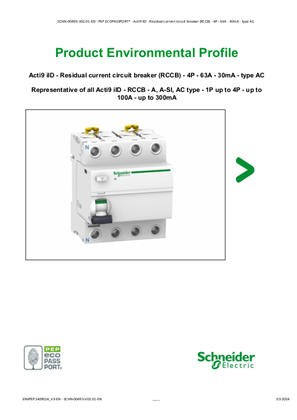

Environmental disclosure

ENVPEP1409014EN

Circularity profile

N/A

Others

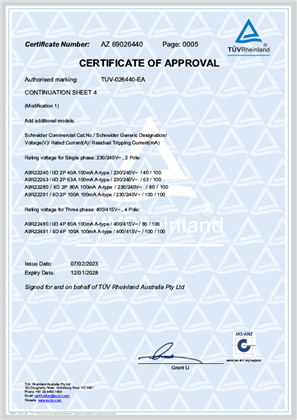

Certification number

DC-E-S26-002.22 - IRAM

Package 1 bare product quantity

1

Package 2 bare product quantity

54

Package 3 bare product quantity

432

Product name

Acti9 iID

Device short name

iID

Poles description

2P

Neutral position

left

Network type

AC

Earth-leakage sensitivity

30 mA

Earth-leakage protection time delay

instantaneous

Earth-leakage protection class

type A-SI (Super Immunised)

Device location in system

outgoer

Network frequency

50/60 Hz

Residual current tripping technology

voltage independent

Rated breaking and making capacity

Idm 1500 A|Im 1500 A

Rated conditional short-circuit current

10 kA

[ui] rated insulation voltage

500 V AC 50/60 Hz

[uimp] rated impulse withstand voltage

6 kV

Surge current

3000 A

Contact position indicator

yes

Comb busbar and distribution block compatibility

top or bottom: tooth

Connection pitch

18 mm between phase and neutral

9 mm pitches

4

Locking options description

padlocking device

Tightening torque

3.5...3.5 N.m top or bottom

Compatibility code

iID

Pollution degree

3

Electromagnetic compatibility

8/20 µs impulse withstand, 3000 A conforming to EN/IEC 61008-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4 cm

Package 1 width

8.3 cm

Package 1 length

10 cm

Package 1 weight

236 g

Unit type of package 2

S03

Number of units in package 2

54

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

13.185 kg

Unit type of package 3

P12

Number of units in package 3

432

Package 3 height

44.4 cm

Package 3 width

80 cm

Package 3 length

120 cm

Package 3 weight

117.480 kg

Halogen content performance

Halogen free plastic parts product
Show all specifications

Frequently Asked Questions

hide show

What is the replacement for a Merlin Gerin part 23362?

The current alternative is A9R51263.

RCCB - 2P - 63A - 30mA - type A
