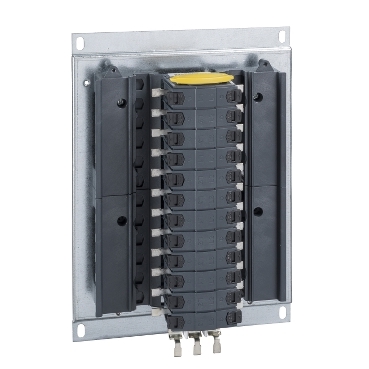

Acti 9, Panel Fixing Pan Assembly, 8 ways TP&N

Home ProductsCircuit ProtectionActi 9Panel Fixing Pan Assembly

Acti 9, Panel Fixing Pan Assembly, 8 ways TP&N

Item Number: SEA9BN8TNA

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

pan assembly

Device application

distribution

Sustainable offer status

Green Premium product

Physical

Range compatibility

Acti9 Acti9 Isobar B distribution board

Provided equipment

mounting plate

[in] rated current

250 A

Rated voltage

415 V AC 50/60 Hz

Number of poles

24 x 18 mm

Length

290 mm

Width

210 mm

Depth

90 mm

Standards

IEC 61439

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1602010EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Short-circuit withstand

25 kA 0.1 s

[icw] rated short-time withstand current

25 kA

[ui] rated insulation voltage

500 V

[uimp] rated impulse withstand voltage

6 kV

Incomer device

3P switch disconnector| 3P terminal block| 3P MCCB

Protection device type

residual current circuit breaker with overcurrent protection (RCBO) 45 A max |miniature circuit breaker (MCB) 63 A max

Number of ways

8 ways (outgoer)|1 way (incomer) - 3P + N

Busbar pitch

18 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

10.500 cm

Package 1 width

22.000 cm

Package 1 length

30.000 cm

Package 1 weight

1.875 kg

Unit type of package 2

PAL

Number of units in package 2

120

Package 2 height

100.000 cm

Package 2 width

100.000 cm

Package 2 length

120.000 cm

Package 2 weight

245.000 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Halogen content performance

Halogen free plastic parts product
