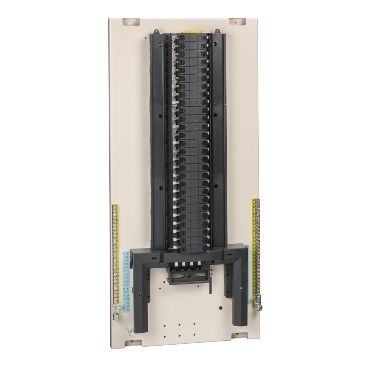

Acti9, Pan assembly, 18 ways TP + earth + neutral

Acti9, Pan assembly, 18 ways TP + earth + neutral

Item Number: SEA9BN18PEV

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

pan assembly

Device application

distribution

Physical

Range compatibility

Acti 9 Acti9 Isobar B distribution board

Provided equipment

<ul><li>grounding bar</li><li>mounting plate</li><li>neutral bar</li><li>DIN rail</li></ul>

[in] rated current

250 A

Number of poles

54 x 18 mm

Length

746 mm

Width

350 mm

Depth

105 mm

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1602010EN

Circularity profile

N/A

Others

Commercial status history

<ul><li>SESA301466</li><li>Mon Jul 17 21:48:00 EDT 2023</li><li>From Import Local</li><li>From 08 to 08</li></ul>

Package 1 bare product quantity

1

Incomer device

<ul><li>4P switch disconnector</li><li>4P terminal block</li><li>3P + N RCCB</li><li>3P + N MCCB</li><li>4P contactor</li></ul>

Protection device type

<ul><li>residual current circuit breaker with overcurrent protection (RCBO) 45 A max</li><li>miniature circuit breaker (MCB) 63 A max</li></ul>

Number of ways

<ul><li>18 ways (outgoer)</li><li>1 way (incomer) - 3P + N + E</li></ul>

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

11.5 cm

Package 1 width

39.0 cm

Package 1 length

76.0 cm

Package 1 weight

7.625 kg

Unit type of package 2

PAM

Number of units in package 2

24

Package 2 height

112.0 cm

Package 2 width

100.0 cm

Package 2 length

120.0 cm

Package 2 weight

203.0 kg

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Halogen content performance

Halogen free plastic parts product

Halogen content performance

Halogen free plastic parts product

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
