Acti9, IEM3110 energy meter, 63 A - 1 pulse O - MID

Acti9, IEM3110 energy meter, 63 A - 1 pulse O - MID

Item Number: A9MEM3110

Datasheet

Product Dimensions

Width icon

Width90 mm

Height icon

Height95 mm

Depth icon

Depth69 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

energy meter

Market segment

buildings small building cost management: billing: main incomer|buildings small building cost management: billing: sub feeder|buildings small building cost management: billing: panelboard|buildings medium building cost management: billing: main incomer|buildings medium building cost management: billing: sub feeder|buildings medium building cost management: billing: panelboard|buildings large building cost management: billing: main incomer|buildings large building cost management: billing: sub feeder|buildings large building cost management: billing: panelboard|buildings multi-site cost management: billing: main incomer|buildings multi-site cost management: billing: sub feeder|buildings multi-site cost management: billing: panelboard|data center cost management: billing|healthcare cost management: billing|industry cost management: billing|buildings small building cost management: cost allocation: main incomer|buildings small building cost management: cost allocation: sub feeder|buildings small building cost management: cost allocation: panelboard|buildings medium building cost management: cost allocation: main incomer|buildings medium building cost management: cost allocation: sub feeder|buildings medium building cost management: cost allocation: panelboard|buildings large building cost management: cost allocation: main incomer|buildings large building cost management: cost allocation: sub feeder|buildings large building cost management: cost allocation: panelboard|buildings multi-site cost management: cost allocation: main incomer|buildings multi-site cost management: cost allocation: sub feeder|buildings multi-site cost management: cost allocation: panelboard|data center cost management: cost allocation|healthcare cost management: cost allocation|industry cost management: cost allocation

Device application

partial meter|sub billing

Market segment

small commercial|residential

Warranty

18 months

Physical

Depth

69 mm

Height

95 mm

Width

90 mm

Ambient air temperature for storage

-40...85 °C

Ip degree of protection

IP40 front panel: conforming to IEC 60529|IP20 body: conforming to IEC 60529

Ambient air temperature for operation

-25...55 °C - MID|-25...70 °C - IEC|-25...60 °C - IEC

Relative humidity

5...95 % at 50 °C

[in] rated current

63 A

Rated voltage

100...277 V|173...480 V

Communication port protocol

-

Local signalling

green indicator light: power ON|yellow flashing LED: accuracy checking

Mounting mode

clip-on

Mounting support

DIN rail

Connections - terminals

screw terminals 16-16 mm² cable(s)

Standards

BS EN 61557-12:2021|IEC 61557-12:2021|EN 61557-12:2021|BS EN 61326-1|IEC 61326-1|EN 61326-1|BS EN 62052-11:2020|IEC 62052-11:2020|EN 62052-11:2020|BS EN 62053-21|IEC 62053-21|EN 62053-21|BS EN 62052-23|IEC 62053-23:2020|EN 62052-23|BS EN 62052-31:2015|IEC 62052-31:2015|EN 62052-31:2015|BS EN 61010-1:2010|EN 61010-1:2010|IEC 61010-1:2010|UL 61010-1:2010|BS EN 61010-2-30|IEC 61010-2-30|EN 61010-2-30|UL 61010-2-30|BS EN 50470-3|EN 50470-3|BS EN 50470-1|EN 50470-1|ANSI C12.16

Product certifications

CE conforming to IEC 61010-1 (safety)|CE conforming to EN 61557-12 (power monitor)|CE conforming to EN/IEC 61326-1 (EMC)|UKCA conforming to BS EN 61010-1 (safety)|UKCA conforming to BS EN 61557-12 (power monitor)|UKCA conforming to BS EN 61326-1 (EMC)|cULus conforming to UL 61010-1 (safety)|cULus conforming to EN 61010-1 (safety)|EAC conforming to EN 50470-3 (sub-meter)|RCM conforming to EN 62052 (sub-meter)|KZ conforming to EN 50470-3 (sub-meter)|METAS conforming to EN 50470-1 (sub-meter)|MID conforming to EN 50470-3 (sub-meter)|MID conforming to EN 50470-1 (sub-meter)|NMI conforming to NMI M 6-1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

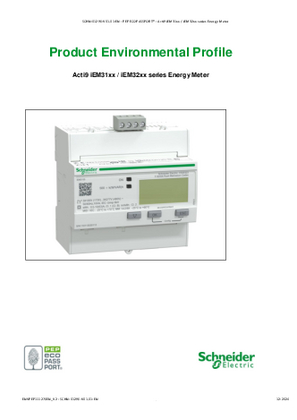

ENVPEP111276EN

Circularity profile

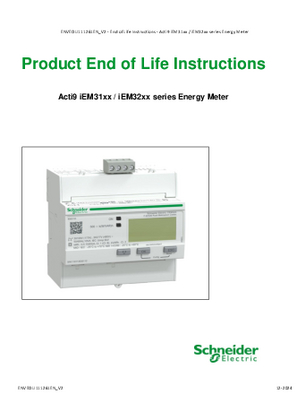

ENVEOLI111261EN_V1

California proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Others

9 mm pitches

10

Operating altitude

< 2000 m

Package 1 bare product quantity

1

Package 2 bare product quantity

30

Package 3 bare product quantity

720

Pollution degree

2

Product name

Acti9 iEM3000

Device short name

iEM3110

Poles description

3P|1P + N|3P + N

Type of measurement

active energy

Accuracy class

class 1 active energy conforming to IEC 62053-21|class 1 active energy conforming to IEC 61557-12|class B active energy conforming to EN 50470-3

Analogue input type

direct connection

Network frequency

60 Hz|50 Hz

Technology type

electronic

Display type

LCD display

Sampling rate

32 samples/cycle

Measurement current

0...63 A

Maximum value measured

99999999.9 kWh

Communication port support

-

Number of inputs

0

Number of outputs

1 pulse

Overvoltage category

III

Compatibility code

iEM3110

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8 cm

Package 1 width

9.5 cm

Package 1 length

10.5 cm

Package 1 weight

435 g

Unit type of package 2

S03

Number of units in package 2

30

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

13526 g

Unit type of package 3

P12

Number of units in package 3

720

Package 3 height

120 cm

Package 3 width

110 cm

Package 3 length

80 cm

Package 3 weight

333624 g

Green premium status for reporting

Green Premium product

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

36b9e771-8698-4898-bbaa-9485afad920c

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
