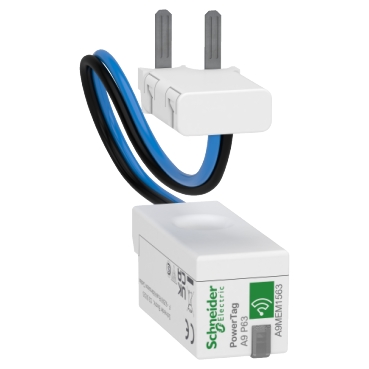

Acti9, Energy sensor, PowerTag Phase Neutral 63A 1P+N bottom position for RCBO 18mm Slim

Acti9, Energy sensor, PowerTag Phase Neutral 63A 1P+N bottom position for RCBO 18mm Slim

Item Number: A9MEM1563

Datasheet

Product Dimensions

Width icon

Widthsensor element: 18 mm|base unit: 18 mm

Height icon

Heightsensor element: 20 mm|base unit: 8 mm

Depth icon

Depthsensor element: 44.5 mm|base unit: 28 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PowerLogic

Product or component type

energy sensor

Market segment

buildings: breaker voltage monitoring|buildings: cost allocation|buildings: overload alarm

Product destination

switchboard

Sustainable offer status

Green Premium product

Physical

Range compatibility

Acti 9 Acti9 iKQE RCBO|Acti 9 Acti9 iC60 iC60H RCBO|Acti 9 Acti9 iC60 iC60H2 RCBO

Mounting support

on circuit breaker

Mounting mode

by screws (terminals)

[ue] rated operational voltage

200...240 V AC, +/- 20 %

Standards

IEC 61557-12|IEC 61010-1|IEC 61010-2-030|IEC 61326-1|ETSI EN 300 328|ETSI EN 301 487-1

Height

sensor element: 20 mm|base unit: 8 mm

Width

sensor element: 18 mm|base unit: 18 mm

Depth

sensor element: 44.5 mm|base unit: 28 mm

Net weight

18 g

Ambient air temperature for operation

-25...60 °C

Ambient air temperature for storage

-40...85 °C

Ip degree of protection

IP20 conforming to IEC 60529

Ik degree of protection

IK05

Relative humidity

0...95 % at 45 °C conforming to IEC 60721...3-3

Environmental characteristic

dustproof class 3S3 conforming to IEC 60721-3-3|salt mist class 3C2 conforming to IEC 60721-3-3|indoor use

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2201022

Circularity profile

ENVEOLI2201022

California proposition 65

"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Others

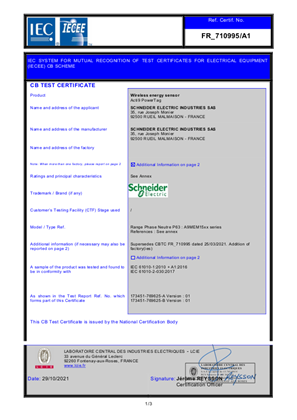

Certification number

DC-E-S26-061.6 - IRAM

Package 1 bare product quantity

1

Package 2 bare product quantity

30

Product name

PowerTag A9 P63

Poles description

1P + N

Max current

63 A

Product specific application

load monitoring|cost allocation|overload alarm|circuit monitoring|energy management

Concentrator compatibility

Acti9 Smartlink SI B|Acti9 Smartlink SI D|Acti9 PowerTag Link C|Acti9 PowerTag Link|Acti9 PowerTag Link HD|Wiser IP module|EcoStruxure Panel Server Universal|EcoStruxure Panel Server Advanced|PrismaSet Active

Type of measurement

active power|power factor|active energy|current|voltage

Accuracy class

class 1 current conforming to IEC 61557-12|class 0.5 voltage conforming to IEC 61557-12|class 1 active power conforming to IEC 61557-12|class 1 active energy conforming to IEC 61557-12|class 1 power factor conforming to IEC 61557-12

Mounting location

bottom

Connection pitch

9 mm Ph/N

Event management

voltage loss with measured current at voltage loss

Transmission support medium

radio frequency 2.4-2.4835 GHz conforming to IEEE 802.15.4

Emission power

10 mW

Form factor

phaseNeutral

Electrical connection

connector tooth

Cable cross section

1 rigid cable 1.5...16 mm²|2 stranded cable 1.5...2.5 mm²|2 rigid cable 1.5...2.5 mm²|1 stranded cable 1.5...16 mm²

Network frequency

50 Hz|60 Hz

Power consumption in va

1 VA

Compatibility code

PowerTag A9 F63

Quality labels

CE

Directives

2014/53/EU - radio equipment directive

Operating altitude

0...2000 m

Overvoltage category

III conforming to IEC 61010-1

Measurement category

category III conforming to IEC 61010-2-030

Pollution degree

3

Vibration resistance

3M4 conforming to IEC 60721-3-3

Electromagnetic compatibility

industrial electromagnetic environment conforming to IEC 61326-1|radiated EMC conforming to ETSI EN 301 489-17|electromagnetic emission conforming to IEC 62311

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.500 cm

Package 1 width

7.400 cm

Package 1 length

8.000 cm

Package 1 weight

43.000 g

Unit type of package 2

S02

Number of units in package 2

30

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

2.430 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
