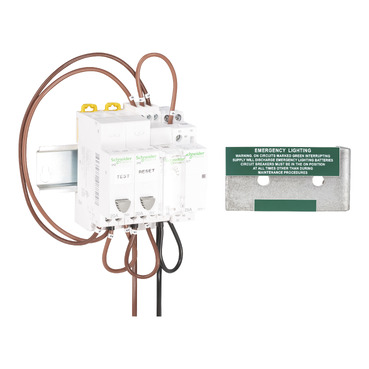

Acti9, Emergency Light Kit, 2 N/C, Push Button

Acti9, Emergency Light Kit, 2 N/C, Push Button

Item Number: PBELKIT2PB

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

emergency light test kit

Device application

emergency lighting

Physical

Provided equipment

1 contactor|1 relay|2 push buttons|1 DIN rail

[in] rated current

25 A

Rated voltage

230...240 V AC

Control type

1 push-button

Connections - terminals

cable with cable end

Eu rohs directive

Under investigation

Others

Package 1 bare product quantity

1

Accessory / separate part category

enclosure accessory

Pole contact composition

4 NC

Time delay

0.1...10 h|factory set to 2 hrs

Total number of 18 mm modules

4

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

22.9 cm

Package 1 width

19.7 cm

Package 1 length

19.0 cm

Package 1 weight

496.0 g

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
