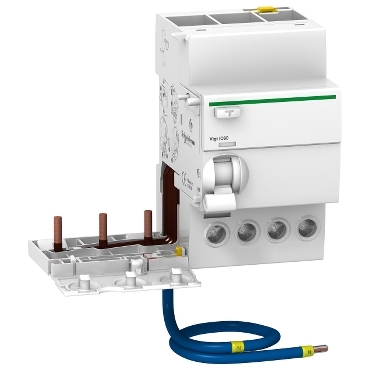

Acti9, Earth leakage add-on block, 3P + N, 63A, 300mA, A type

Home ProductsCircuit ProtectionActi 9Earth leakage add-on block

Acti9, Earth leakage add-on block, 3P + N, 63A, 300mA, A type

Item Number: A9V06763

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width108 mm

Height icon

Height91 mm

Depth icon

Depth73.5 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Range of product

iC60

Product or component type

add-on residual current device

Product compatibility

single terminal

Warranty

18 months

Physical

[in] rated current

63 A

[ue] rated operational voltage

<ul><li>400...415 V AC 50/60 Hz conforming to EN/IEC 61009-1</li><li>400...415 V AC 50/60 Hz conforming to EN/IEC 61009-2-1</li></ul>

Standards

<ul><li>EN/IEC 61009-1</li><li>EN/IEC 61009-2-1</li></ul>

Range compatibility

Acti 9 Acti9 iC60

Local signalling

trip indicator

Mounting mode

clip-on

Mounting support

DIN rail

Height

91 mm

Width

108 mm

Depth

73.5 mm

Net weight

0.245 kg

Connections - terminals

<ul><li>tunnel type terminal downside for 1 cable(s) 1-35 mm² rigid without cable end</li><li>tunnel type terminal downside for 1 cable(s) 1-25 mm² flexible without cable end</li><li>tunnel type terminal downside for 1 cable(s) 1-25 mm² flexible with cable end</li></ul>

Wire stripping length

14 mm for bottom connection

Ip degree of protection

<ul><li>IP20 conforming to IEC 60529</li><li>IP40 (modular enclosure) conforming to IEC 60529</li></ul>

Ambient air temperature for operation

-25...60 °C

Ambient air temperature for storage

-40...85 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1409017EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Product name

Acti9 Vigi iC60

Device short name

Vigi iC60

Poles description

3P + N

Neutral position

left

Earth-leakage sensitivity

300 mA

Earth-leakage protection time delay

instantaneous

Earth-leakage protection class

type A

Network type

AC

Network frequency

50/60 Hz

9 mm pitches

6

Device location in system

outgoer

Residual current tripping technology

voltage independent

[ui] rated insulation voltage

500 V AC 50/60 Hz conforming to IEC 60947-2

[uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-2

Electrical connection to mcb

by screws

Comb busbar and distribution block compatibility

bottom: YES

Total power losses

6.9 W

Power losses per pole

2.3 W

Tightening torque

3.5...3.5 N.m bottom

Pollution degree

3 conforming to IEC 60947-2

Electromagnetic compatibility

8/20 µs impulse withstand, 250 A conforming to IEC 61009-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.5 cm

Package 1 width

11.5 cm

Package 1 length

14.5 cm

Package 1 weight

265 g

Unit type of package 2

S03

Number of units in package 2

15

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

4.467 kg

Packaging made with recycled cardboard

No

Packaging without single use plastic

Yes

Scip number

b078722f-7853-4e1e-a05b-29638f57b0ab

Green premium status for reporting

Green Premium product

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

8.185351893038263
