Acti9, Earth leakage add-on block, 1P + N, 63A, 300mA, A type

Home ProductsCircuit ProtectionActi 9Earth leakage add-on block

Acti9, Earth leakage add-on block, 1P + N, 63A, 300mA, A type

Item Number: A9V06663

Datasheet

Product Dimensions

Width icon

Width54 mm

Height icon

Height91 mm

Depth icon

Depth73.5 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Range of product

iC60

Product or component type

add-on residual current devices

Product compatibility

single terminal

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

[in] rated current

63 A

[ue] rated operational voltage

230...240 V AC 50/60 Hz conforming to EN/IEC 61009-1|230...240 V AC 50/60 Hz conforming to EN/IEC 61009-2-1

Standards

EN/IEC 61009-1|EN/IEC 61009-2-1

Range compatibility

Acti 9 Acti9 iC60

Local signalling

trip indicator

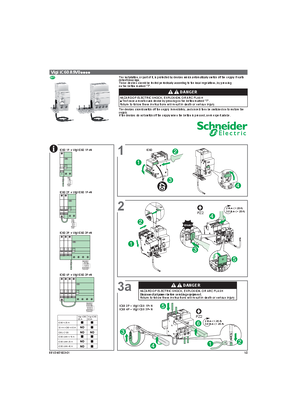

Mounting mode

clip-on

Mounting support

DIN rail

Height

91 mm

Width

54 mm

Depth

73.5 mm

Net weight

0.165 kg

Connections - terminals

tunnel type terminal downside for 1 cable(s) 1-35 mm² rigid without cable end|tunnel type terminal downside for 1 cable(s) 1-25 mm² flexible without cable end|tunnel type terminal downside for 1 cable(s) 1-25 mm² flexible with cable end

Wire stripping length

14 mm for bottom connection

Ip degree of protection

IP20 conforming to IEC 60529|IP40 (modular enclosure) conforming to IEC 60529

Ambient air temperature for operation

-25...60 °C

Ambient air temperature for storage

-40...85 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1409017EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

15

Device short name

Vigi iC60

Poles description

1P + N

Neutral position

left

Earth-leakage sensitivity

300 mA

Earth-leakage protection time delay

instantaneous

Earth-leakage protection class

type A

Network type

AC

Network frequency

50/60 Hz

9 mm pitches

4

Device location in system

outgoer

Residual current tripping technology

voltage independent

[ui] rated insulation voltage

500 V AC 50/60 Hz conforming to IEC 60947-2

[uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-2

Electrical connection to mcb

by screws

Comb busbar and distribution block compatibility

bottom: YES

Tightening torque

3.5...3.5 N.m bottom

Pollution degree

3 conforming to IEC 60947-2

Electromagnetic compatibility

8/20 µs impulse withstand, 250 A conforming to IEC 61009-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.500 cm

Package 1 width

11.300 cm

Package 1 length

14.500 cm

Package 1 weight

216.000 g

Unit type of package 2

S03

Number of units in package 2

15

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

3.682 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Halogen content performance

Halogen free plastic parts product
