Acti9, Control and remote indication, with Ti24 connector

Item Number: A9C15424

1 PCE 0

This Acti9 iATL24 product is reliable control and remote indication with Ti24 connector auxiliary. Is operates with 230VAC control voltage. Mounting is performed between 2 iTL impulse relay with yellow clips. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is associated with iTL impulse relays to allow remote indication of their operating state. This product is compliant with IEC 60947-1 appendix S.

Where To Buy

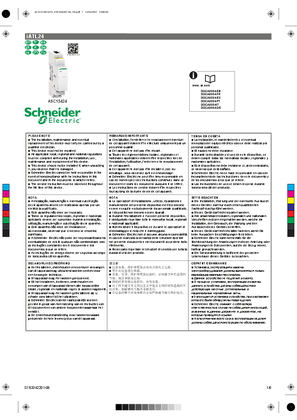

Datasheet

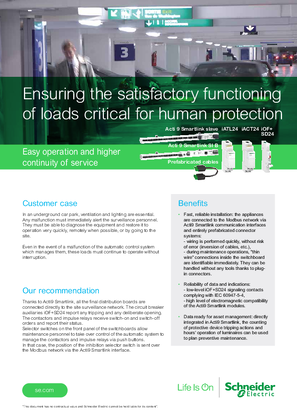

Download

Product Dimensions

Width18 mm

Height81 mm

Depth68 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3606480430626	-

Specifications

Design

Range of product

Acti9

Range

Acti9

Product or component type

control and indication auxiliary

Product compatibility

Acti 9 Smartlink|iTL (32 A) - 230/240 V 50 Hz|iTL (16 A) - 230/240 V 50 Hz

Market segment

small commercial

Warranty

18 months

Physical

Ambient air temperature for operation

-25...60 °C

Ambient air temperature for storage

-40...80 °C

Standards

IEC 60947-1 appendix S

Ip degree of protection

IP20 conforming to IEC 60529|IP40 (modular enclosure) conforming to IEC 60529

Relative humidity

93 % at 40 °C conforming to IEC 60068...2

Control type

remote control

Power consumption in w

1 W

Mounting mode

fixed, on the left of CT

Mounting support

DIN rail

Electrical durability

250000 cycles conforming to IEC 60947-5-1

Height

81 mm

Width

18 mm

Depth

68 mm

Connections - terminals

power supply: tunnel type terminals 1 cable(s) 0.5-10 mm² - rigid|power supply: tunnel type terminals 1 cable(s) 0.5-6 mm² - flexible|power supply: tunnel type terminals 1 cable(s) 0.5-4 mm² - flexible with ferrule|input: tunnel type terminals 2 cable(s) 0.5-2.5 mm² - rigid|input: tunnel type terminals 2 cable(s) 0.5-2.5 mm² - flexible|input: tunnel type terminals 2 cable(s) 0.5-2.5 mm² - flexible with ferrule|Ti24 interface: spring-loaded terminal Ti24 2 cable(s) 0.5-1.5 mm² - rigid|Ti24 interface: spring-loaded terminal Ti24 1 cable(s) 0.5-1.5 mm² - flexible

Wire stripping length

power supply: 9 mm for bottom connection|input: 9 mm for bottom connection|Ti24 interface: 10 mm for top connection

Range compatibility

Acti 9 Acti9 iTL iTL|Acti 9 Acti9 iTL iTLi|Acti 9 Acti9 iTL iTLs|Acti 9 Acti9 iTL iTLc

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP2311015EN

Circularity profile

N/A

Others

Overvoltage category

Package 1 bare product quantity

Quality labels

Pollution degree

3 conforming to IEC 60439-1

Tropicalisation

2 conforming to IEC 60947-5-1

Device short name

iATL24

Signal contacts composition

1 NO

Signalling circuit voltage

24 V DC: +/- 20 % 0.002...0.1 A

[uc] control circuit voltage

230 V AC 50/60 Hz impulse >= 200 ms|24 V DC falling edge|24 V DC rising edge

[us] rated supply voltage

230 V AC at 50/60 Hz

[ui] rated insulation voltage

250 V AC 50/60 Hz

[uimp] rated impulse withstand voltage

8 kV

Comb busbar and distribution block compatibility

bottom: YES|top: NO

Immunity to microbreaks

10 ms

Undervoltage behaviour

no opening if loss of 24 V DC

Total power losses

0.15 W

Power losses per pole

0.15 W

9 mm pitches

Tightening torque

power supply: 1 N.m bottom|input: 1 N.m bottom

Compatibility code

iATL24

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

2.7 cm

Package 1 width

7.6 cm

Package 1 length

8.6 cm

Package 1 weight

79.0 g

Unit type of package 2

S03

Number of units in package 2

108

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

9.166 kg

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Bvb url

https://byggvarubedomningen.se/

Scip number

da760509-96fa-4194-b786-23702d60b14a

Bvb

Accepted

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

Product contributes to saved and avoided emissions

VERSION

3.0

DATE

29 Sep 2023

REVISION

3.0
