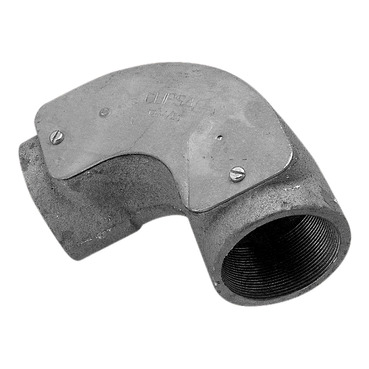

Clipsal - Cable Management Inspection Elbow 50mm Galvanised Cast Iron
Item Number: 1244/50
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Range of product
Series 1244
Surface treatment
galvanised
Physical
Connector type
thread connector
Length
116 mm
Standards
- AS 1721
- AS 2052
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP110719EN
Circularity profile
N/A
Material
Material
cast iron
Others
Package 1 bare product quantity
1
Diameter
50 mm
Operating angle
90 °
Inner radius
25 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
920 g
