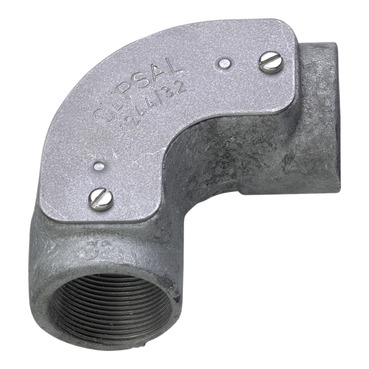

Clipsal - Cable Management, Inspection Elbow, 32mm Galvanised Cast Iron
Item Number: 1244/32
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Range of product
Series 1244
Surface treatment
galvanised
Physical
Connector type
thread connector
Length
79 mm
Standards
- AS 2052
- AS 1721
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP110719EN
Circularity profile
N/A
Material
Material
cast iron
Others
Commercial status history
- SESA301466
- Wed Sep 27 02:54:00 EDT 2023
- From Import Local
- From 14 to 19
Package 1 bare product quantity
1
Diameter
32 mm
Operating angle
90 °
Inner radius
10 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.5 cm
Package 1 width
6 cm
Package 1 length
11 cm
Package 1 weight
418 g
Unit type of package 2
BB1
Number of units in package 2
10
Package 2 height
11.2 cm
Package 2 width
17.2 cm
Package 2 length
18.2 cm
Package 2 weight
4.358 kg
Unit type of package 3
CAR
Number of units in package 3
20
Package 3 height
20 cm
Package 3 width
18 cm
Package 3 length
22 cm
Package 3 weight
8.36 kg
