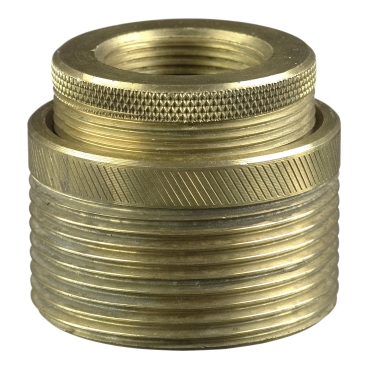

Clipsal - Cable Management, Brass Adaptor, 2 Inch BSP Male to 25mm Female
Item Number: 1235BSP50/25
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Product destination
- diameter: 25-25 mm tube
- diameter: 50-50 mm tube
Physical
Connector type
thread connector
Length
38 mm
Standards
- BS 2779
- AS 1721
- AS 2052
- AS 1722.2
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP110719EN
Circularity profile
N/A
Material
Material
brass
Others
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.362 kg
