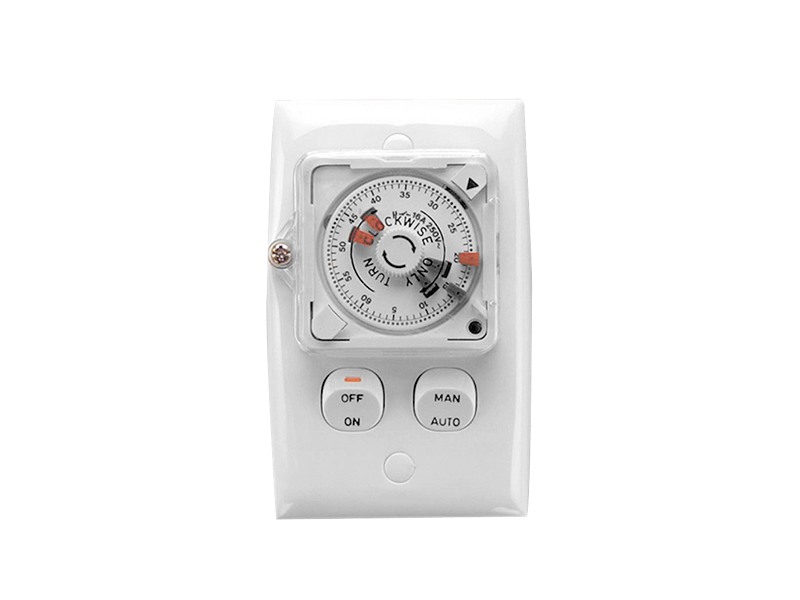

Do you have any documentation on how i can set the timer TC32V7D?

FA289601

15 April 2021

Please find attached PDF. These wiring instructions are generic as they cover multiple products. This is because a few of our timers all use the same timer through out the device.

Some of the key features are:

  • 7 days timer
  • Size: 115 mm length x 73 mm width x 62 mm depth
  • 84 mm apart Mounting centre
  • 15A Rated


For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=TC32V7D
