When purchasing a ZEN dimmer what parts are required?

FA281771

01 March 2021

To assemble a ZEN Dimmer it will consist of three parts. The mechanism, ZEN Series plate and the knob kit. Alternatively you can use a push button dimmer which does not require a knob kit.
Please see the below table for the part numbers to build a plate

PartPart NumberDescription

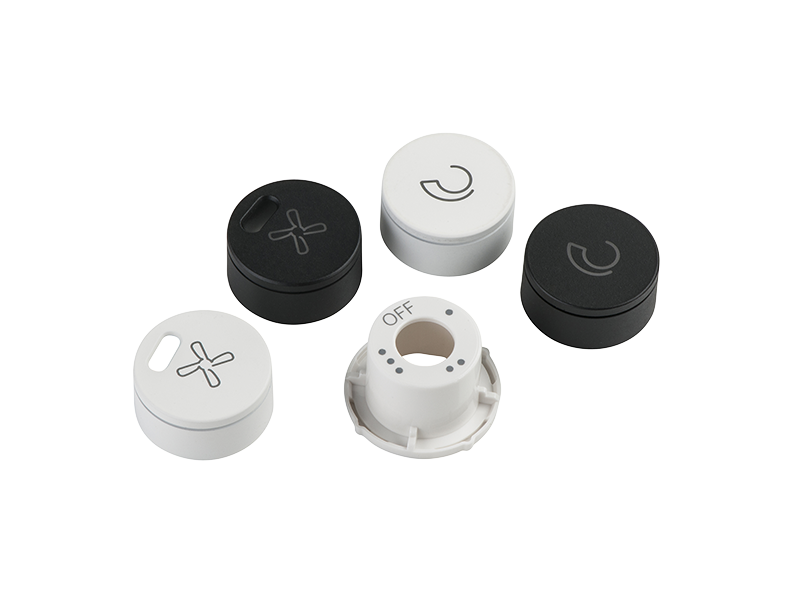

Knob KitZ4062EDIMIncludes 4 knob's 2 white, 2 black. 1 Fan and 1 Dimmer in each colour
Rotary Dimmer4062E450UDMUniversal 450W dimmer **
4062ELEDMTrailing Edge (LED specific)**
Push Button Dimmer4061E2PUDMUniversal Integrally switched* (No knob kit required)
ZEN Grid and CoverZ4061VH1 Gang grid plate and cover in ZEN Series
Z4062VH2 Gang grid plate and cover in ZEN Series
Z4063VH3 Gang grid plate and cover in ZEN Series
Z4064VH4 Gang grid plate and cover in ZEN Series
Z4065VH5 Gang grid plate and cover in ZEN Series
Z4066VH6 Gang grid plate and cover in ZEN Series
Push button Switch60PBLNeeded to switch rotary dimmers

*Integrally switched means that the mechanism is a dimmer and a switch in one. In other words it has a built in switch.
**This dimmer will require a seperate switch to turn the dimmer on and off, meaning it will require a minimum of a 2 gang plate. Standard switch mechanism is a 60PB

For further information please visit Trade - Clipsal by Schneider Electric
