    01 Lighting

    LED Lighting - Made for the Trade

    The Clipsal lighting range provides energy efficient LED luminaires that use intelligent design and innovative technologies. Our LEDs are also backed by a reputation for excellence. Our products challenge conventional thinking and we understand that lighting is no longer considered in isolation. It's part of a system and should work seamlessly with all the other input commands received by energy management, lighting control and dimming products.

    #ClipsalLighting
    • Lighting
    • Energy Efficient
    • Easy Installation

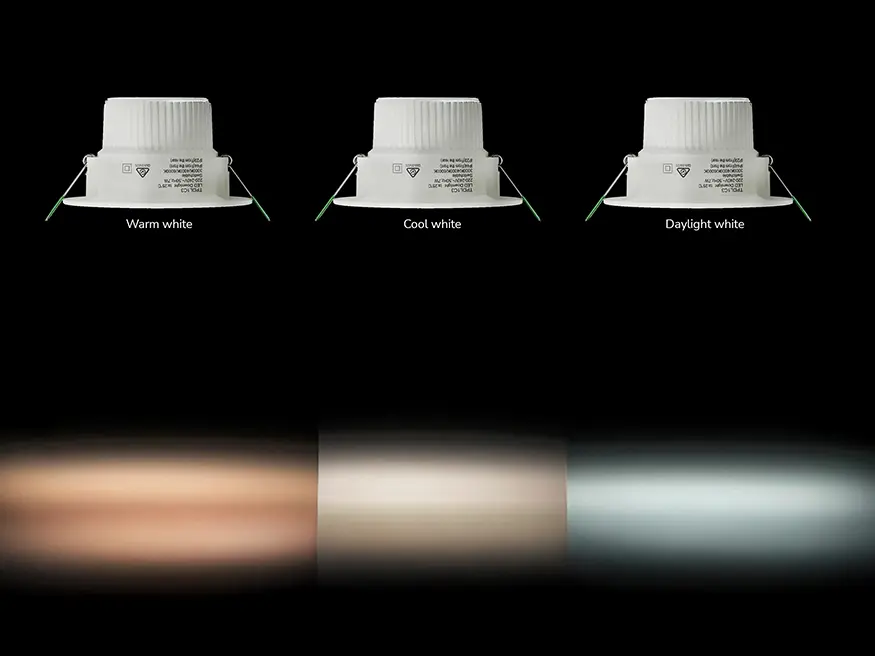

    The recessed, frosted diffuser minimises glare and produces a soft glow. The integrated temperature selector switch offers 3000K, 4000K and 6000K outputs, and the changeable trim suits any installation.
    Cat No.Features
    TPDL1C1LED Downlight, 9W, 700 lm, 3000K/4000K/6000K, IP44, White Trim
    TPDL1C1B10LED Downlight, 9W, 700 lm, 3000K/4000K/6000K, IP44, White Trim - 10 Pack
    TPDL1TBCDownlight Trim, Twist Lock to suit TPDL1C1 - Brushed Chrome

    Perfect for general illumination in residential or light commercial buildings. With an extra wide trim, integral driver, flex & plug and low profile the Clipsal TPDL series of LED downlights are unobtrusive and easy to install. With a frosted recessed lens this series has an output that achieves the optimum lighting effect.

    Cat No.Features
    TPDL2K3 LED Downlight, 9W, 950 lm, 3000K, IP44, White Trim
    TPDL2K4 LED Downlight, 9W, 950 lm, 4000K, IP44, White Trim - 10 Pack

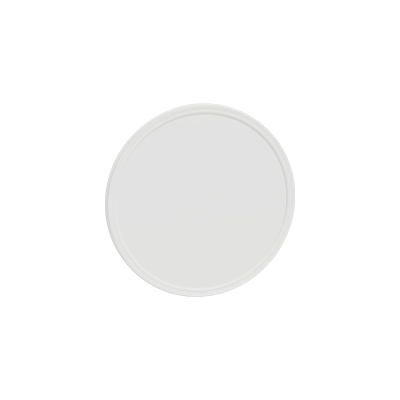

    This series is perfect for applications requiring an efficient, general light source. Economical LED technology ensures a long lamp life and the opal diffuser allows for a soft, even distribution of light.
    Cat No.Features
    CLC14LEDLED Ceiling Light, 14W, 900 lm, 4000K, IP20, Opal Diffuser
    CLW14LEDLED Ceiling Light, 14W, 900 lm, 3000K, IP20, Opal Diffuser
    CLC22LEDLED Ceiling Light, 22W, 1350 lm, 4000K, IP20, Opal Diffuser
    CLW22LEDLED Ceiling Light, 22W, 1350 lm, 3000K, IP20, Opal Diffuser

    Designed to be an energy-efficient replacement for traditional technology, this LED panel series is supplied with remote driver and soft glow diffuser to minimise glare in a sleek low profile design. Ideal for general illumination for commercial buildings that require specific lighting requirements.

    Cat No.Features
    TPLP3 LED Panel, 4000K, 3500 lm, 600x600mm
    TPLP4 LED Panel, 4000K, 3500 lm, 1200x300mm
    TPLP5 LED Panel, 5000K, 3700 lm, 600x600mm
    TPLP6 LED Panel, 5000K, 3700 lm, 1200x300mm
    TPLPPRF6 Plaster Frame (600x600mm)
    TPLPPRF12 Plaster Frame (1200x300mm)
    TPLPSMK6 Surface Mount Kit (600x600mm)
    TPLPSMK12 Surface Mount Kit (1200x300mm)
    TPLPSSKU Suspension Kit (Universal)
    TPLPDRV Driver - Non Dimming
    TPLPDRVDALI Driver - DALI
    A discrete slimline design allows this range to separate itself from others by becoming unobtrusive when not in use. Also available with a sensor option for added energy efficiency savings.
    Cat No.Features
    TPFLS10LEDLED Floodlight, 10W, 900 lm, 4000K, IP65
    TPFLS20LEDLED Floodlight, 20W, 1800 lm, 4000K, IP65
    TPFLS20SENLEDLED Floodlight, 20W, 1800 lm, 4000K, IP44 - with PIR Sensor
    TPFLS50LEDLED Floodlight, 50W, 4500 lm, 4000K, IP65
    TPFLS100LEDLED Floodlight, 100W, 9000 lm, 4000K, IP65
    These robust LED floodlights can withstand the harsh conditions served up during Australian summers and winters. And the adjustable trunnion arm can easily be directed for the optimum lighting effect.
    Cat No.Features
    TPFLH100LEDLED Floodlight, 100W, 10,000 lm, 6500K, IP65
    TPFLH150LEDLED Floodlight, 150W, 14,500 lm, 6500K, IP65
    TPFLH200LEDLED Floodlight, 200W, 20,000 lm, 6500K, IP65

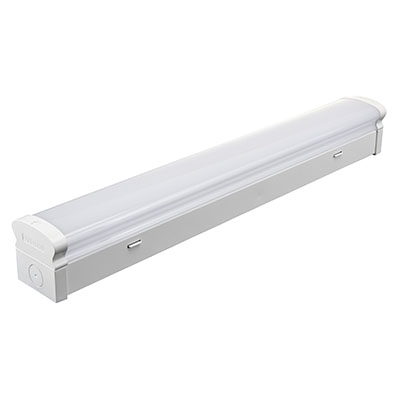

    This series is designed to impress! The advanced LED light module can easily be secured to a solid metal base and the diffuser always ensures a more even distribution of light, at a much greater output.
    Cat No.Features
    TPDBLED1LED Diffused Batten, 20W, 1900 lm, 4000K, IP20, 600mm
    TPDBLED2LED Diffused Batten, 40W, 3800 lm, 4000K, IP20, 1200mm
    TPDBLED2EMLED Diffused Batten, 40W, 3800 lm, 4000K, IP20, 1200mm - Emergency
    This series offers advanced lighting performance, from within a well-tested and highly trusted design. Even the harshest conditions can't prevent these reliable battens from performing time and time again.
    Cat No.Features
    TPWPLED1LED Weatherproof Batten, 20W, 1900 lm, 4000K, IP65, 600mm
    TPWPLED2LED Weatherproof Batten, 40W, 3800 lm, 4000K, IP65, 1200mm
    TPWPLED2EMLED Weatherproof Batten, 40W, 3800 lm, 4000K, IP65, 1200mm - Emergency
    A versatile robust weatherproof and vandal resistant luminaire specifically designed for areas where a high impact resistant body is required. An opal diffuser allows for an even light distribution.

    Cat No.Features
    TUFF112LEDLED Toughnut Batten, 12W, 1900 lm, 4000K, IP54, 600mm
    Clipsal LED Highbays have lightweight housing and a passive cooling heat sink system, for superior thermal management and longer lamp life in large areas requiring maximum output and energy savings.
    Cat No.Features
    TPHBM2LED Highbay, 150W, >18,500 lm, 5000K, IP65
    TPHBM2R9090 Degree Lens Accessory

    A multi-purpose luminaire that can be used as a traditional highbay, suspended from high ceilings. However its trunnion arm provides additional flexibility in applications looking for replacement options for lowbay products.

    Cat No.Features
    TPHBM3LED Highbay, 150W, >15,500 lm, 5000K, IP65
    This range of LED bulkheads provides the perfect solution for installations exposed to harsh weather. A slim design and aluminum housing with silver trim, suits modern homes.
    Cat No.Features
    TPBHS1LED Bulkhead, 20W, 1100 lm, 4000K, IP54, Grey/Silver Rectangle Slim Body
    TPBHS2LED Bulkhead, 20W, 1100 lm, 4000K, IP54, Grey/Silver Round Slim Body

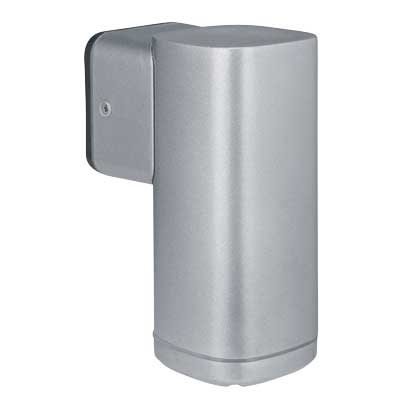

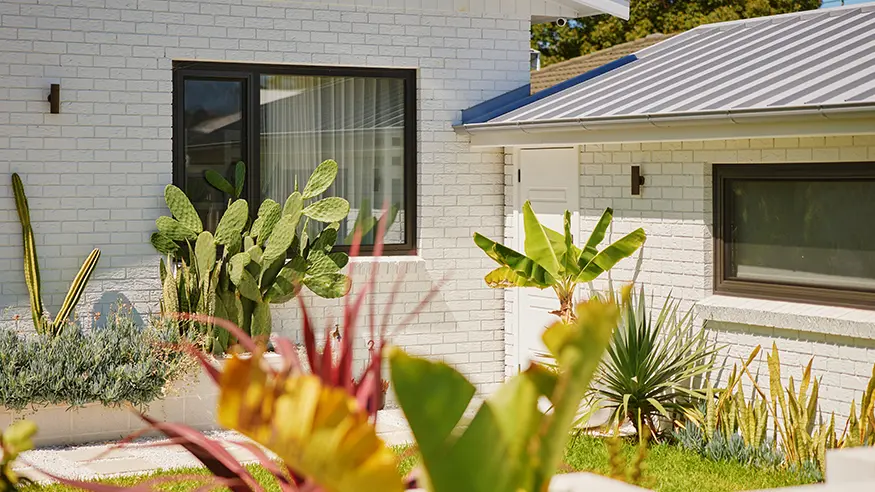

    This sleek wall light series combines highly-efficient LED technology with style. The durable, die-cast aluminium body provides protection and an ultra-modern appearance for any exterior application.
    Cat No.Features
    TPWL1LED Wall Light, Single, 6W, 330 lm, 4000K, IP54, Grey/Silver Body
    TPWL2LED Wall Light, Single, 12W, 640 lm, 4000K, IP54, Grey/Silver Body

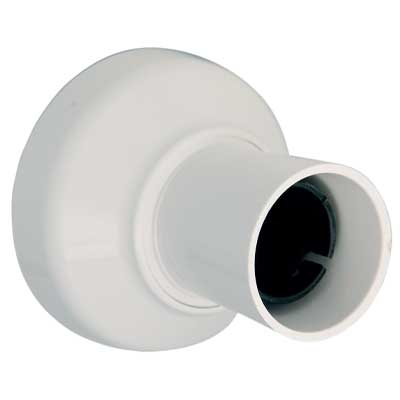

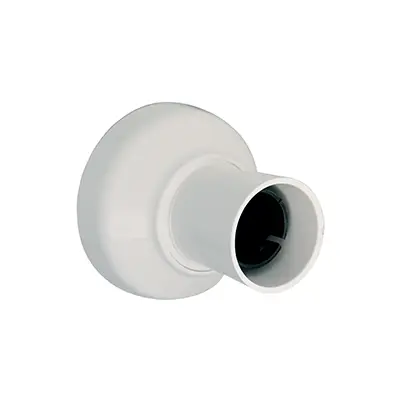

    Our batten holders are engineered from heat-resistant, glass-filled plastic. We've also removed metal ferrules, to enhance insulation, and protect the luminaire from corrosion and improve overall strength.
    Cat No.Features
    2530Batten Holder, BC, Clip on cover
    2530LTBatten Holder, BC, Clip on cover - with hollow wall anchors
    530Batten Holder, BC
    530LTBatten Holder, BC - with hollow wall anchors
    530ESBatten Holder, BC - with hollow wall anchors
    530TBatten Holder, BC - with built in fastening plugs
    533Batten Holder, BC - large base 90mm
    535Batten Holder, BC, Adjustable
    Our ceiling roses are engineered from heat-resistant, glass-filled plastic. We've also removed metal ferrules, to enhance insulation, and protect the luminaire from corrosion and improve overall strength.
    Cat No.Features
    93Ceiling rose , 4 terminal
    93SCeiling rose, 4 terminal - with surface wiring ring
    93ERCeiling rose extension ring only
    93/5Ceiling rose, 5 terminal
    Our lamp holders are engineered from heat-resistant, glass-filled plastic. We've also removed metal ferrules, to enhance insulation, and protect the luminaire from corrosion and improve overall strength.
    Cat No.Features
    501Lamp Holder - three piece, 250V 3A, BC
    501ESLamp Holder - three piece, 250V 3A, ES
    516Lamp Holder - one piece, 250V 3A, BC
